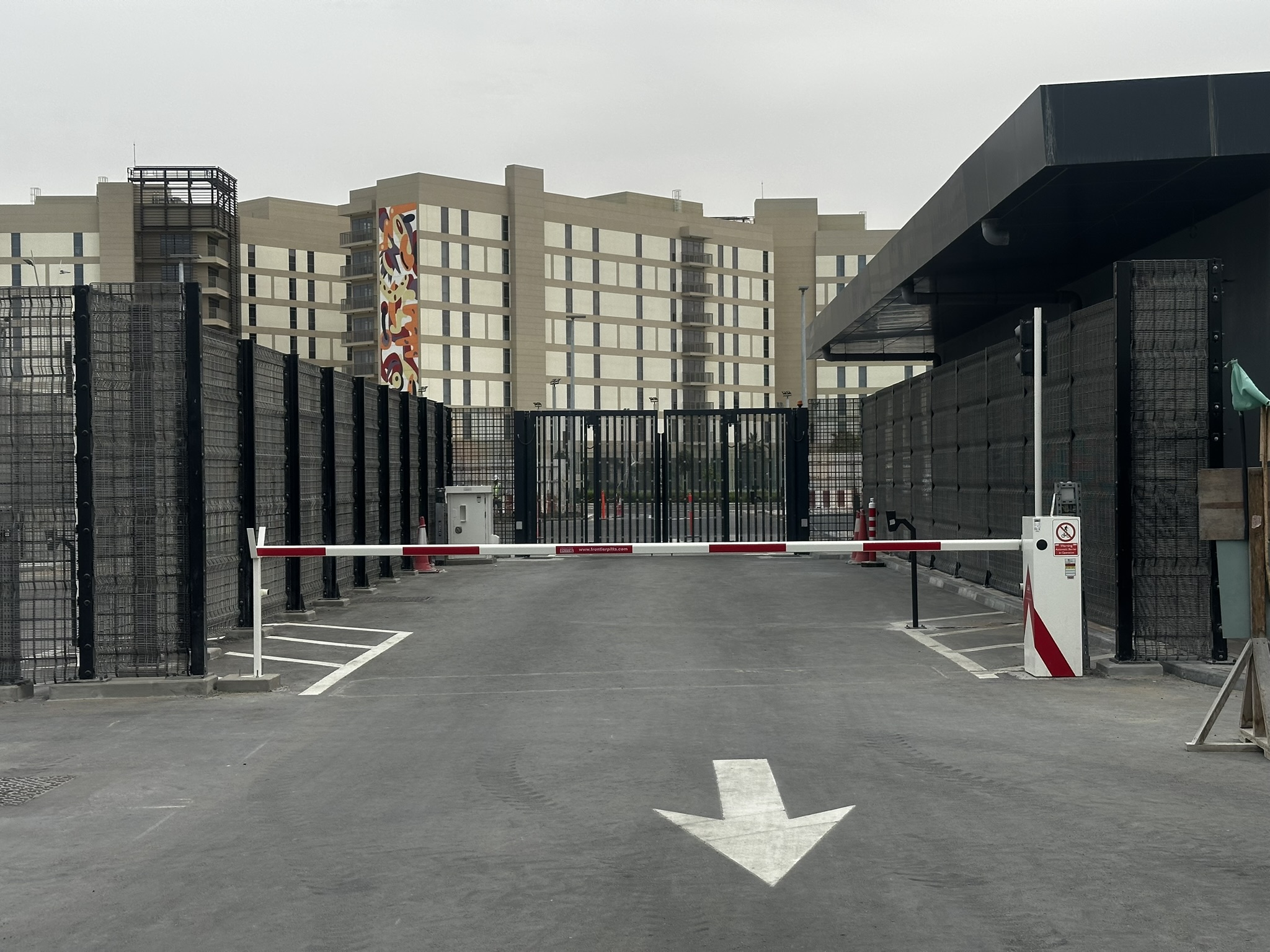

Automatic Barrier Model FBC 6

The popular, rapid-action torque motor automatic barrier.

Boom lengths available 4000mm, 5000mm and 6000mm
Bespoke manufacturing
A rapid-action torque motor automatic barrier which provides high speed vehicle control to wider roadways.
100% duty rating – the torque motor is instantly reversible and designed for continuous/ frequent use. The motor is fitted with variable geometry, speed/torque linkage which generates slow speed and maximum torque. The boom is controlled during the extremes of travel, increasing the speed during mid travel. This design uses low power, high speed of operation and optimum safety.
Counter ballance springs to assist the motor in operation.
Override keyswitch to lock the barrier in either the raised or lowered position independently of the control system.
Left or Right handed barrier according to the side of the barrier cabinet from which the boom shaft protrudes.Security lock on door. Fuse supply double pole isolator, mains failure indicator lamp, earth bonded door, easy accessible fuse unit.
Finish: The cabinet is protected by a finish system comprising; shot blasting to clean metal, zinc rich powder prime and polyester powder coat.
Boom: The FBC6 in manufactured with a octagonal boom profile which is aluminium, engineered for maximum reliability. powder coated, white with red bands. Special colours available.
Optional: Cabinet in clients choice of RAL colour or customised wrap to match clients branding (optional.)

Download Catalogue Download Drawings

For More Information

Name

Phone

Products

Message (Optional)

Benefits & Features

100% duty rating - designed for continuous and frequent use.
Torque Motor Barriers are instantly reversible and motor is constantly energized providing security locking and protection against low temperatures and damp conditions.
Customizable to match individual branding.

Operating Speed

Typical operating speeds of 3.5-7 seconds* depending on configuration; boom length, motor and skirt options.

Options

Boom lights, Maglocks, Articulated booms, Stainless steel cabinet, Signs, Traffic light systems, Skirts, Pogo Stick End Rests
Can be interfaced to any access control systems.

Safety

Vehicle detector loops
Safety photocell beams, light curtain and ultra-sonic sensors
Traffic lights stop button
Signage, audible alarms and flashing beacons

Civil Requirements

Barrier Foundation: 600mm x 600mm
D: 450mm2
Fixed End Rest Foundation: 400mm2
D: 300mm
Barrier Cabinet Dimensions:L: 380mm, W: 350mm, H: 980mm
Note: Power and control wiring ducts to be incorporated into foundations

Electrical Requirements

6 amp, 3 wire, 230V, 50Hz, single phase supply

Sign

Stop sign as standard (Arabic and English text)

When specifying the system, three main points should be considered:

Means of raising the barrier
Means of lowering the barrier
How the passage of the vehicles will be monitored

It is important to consider the type of vehicle using the system and the expected duty cycle.

BUILD 1,2,3

BUILD 4

BUILD 5

BUILD 6

	Induction Loop System for Safety Interlock. Excludes auto/close function. Induction loops are cut into the road surface to detect vehicles
	Photocell System for Safety Interlock. Excludes auto/close function - Photocells are beams of light fitted across the road way to monitor vehicle and pedestrian movement
	Alarm Sounder – can be used to indicate when the product is in motion
	Flashing Beacon – can be used to indicate when the product is in motion

We will carry out the following work in accordance with BS 7671:2008 Requirements for Electrical Installations and BS EN 12453:2001 Industrial, commercial and garage doors and gates – safety in use of power operated doors - requirements and BS EN 12445:2001 Industrial, commercial and garage doors and gates – safety in use of power operated doors – test methods. The gate will be CE marked as required and a certificate of conformity issued on completion of works.
