    Benefits & Features

    • Successfully Forcible Attack Tested by BRE to SR1, 2 & 3 resisting an intensive attack test program in accordance with LPS1175: Issue 7.3.
      Security Rating 1
      – series of attacks lasting 1 minute
      Security Rating 2
      – series of attacks lasting 3 minutes
      Security Rating 3
      – series of attacks lasting 5 minutes

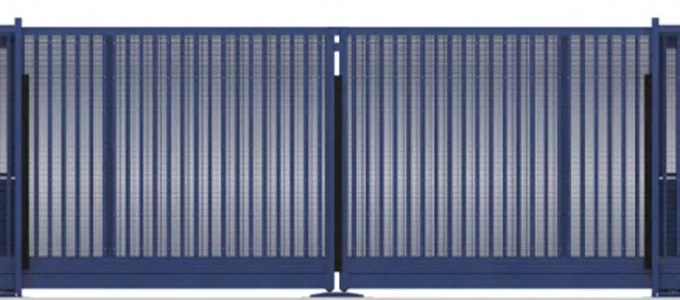

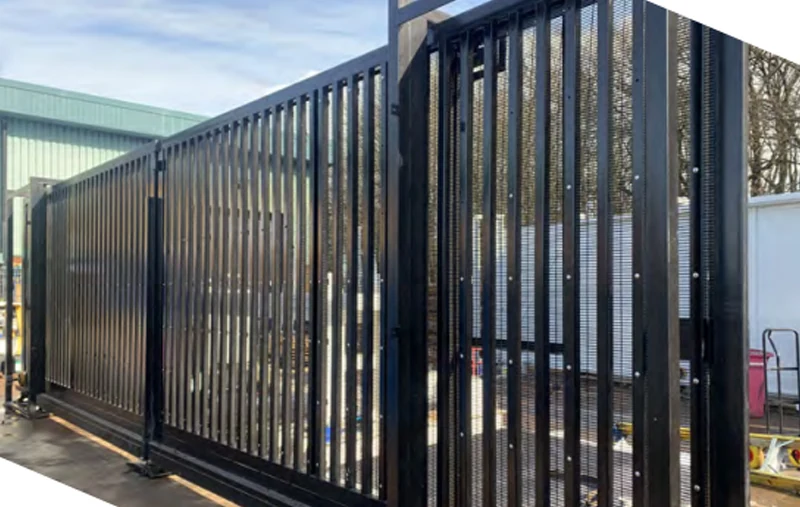

    • Cantilevered Gate; requires no ground track or support across the roadway.
    • The gate leaf is supported by a main bottom beam, which slides 100mm above the road surface.
    • The balance is provided by a unique enclosed runback track, which enables the gate to be fully projected across the roadway without tipping.
    • Small ramp to secure gate leaves in closed position.
    • Electronic control motor drive unit, 100% duty rated

    Operating Speed

    • Typical operating speeds of 200-250mm/second * depending on configuration

    Options

    • Disengaging box – manual override
    • 100/200mm LED Traffic Light System
    • Can be interfaced to any access control systems

    Safety

    • Vehicle detector loops
    • Safety photocell beams and ultra-sonic sensors
    • Safety edges
    • Safety Lasers
    • Signage, audible alarms and flashing beacons

    Civil Requirements

    • Gate Leaf foundations (2 no. required) D: 500 - Dependent on size of gate leaves
    • Locator Foundation L:800 E:500 D:300 (Note: Power and control wiring ducts to be incorporated into foundations)
    • Run back= ((Aperture/2) x1.5) -178mm Note: Power and control wiring ducts to be incorporated

    Electrical Requirements

    • 6 amp, 3 wire, 230v, 50hz, single phase supply

    Depending on configuration

    This is subject to a risk assessment to ensure the automatic equipment complies to BS EN 12453
