    Different Models

    • PAS 68 Terra Blocker MkII 7.5t @ 30mph Zero Penetration V Road Blocker 7500[N2]/48/90:0.0/0.0 Tested dimensions: width 3000mm, lift height 810mm
    • PAS 68 Terra Blocker MkII 7.5t @ 50mph V Road Blocker 7500[N3]/80/90:4.0/25.0 Tested dimensions: width 2500mm, lift height 950mm
    • K12 L3 Terra Blocker 6.8t Truck at 80kph (50mph) Zero Penetration Tested dimensions: width 2500mm, lift height 810mm

    Operating Speed

    • Typical speeds of 4-6 seconds
    • EFO (extra fast operation) in up to 2-3 seconds (depending on configuration)

    Options

    • Accumulator or manual hand pump allow a number of operations in power failure mode
    • In the event of Power Failure options of Fail Secure (remain in the raised position) or Fail Safe (remain in the lowered position)
    • High Security Cabinet
    • Can be interfaced to any access control systems
    • 100/200mm Traffic Light System

    Safety

    • Vehicle detector loops
    • Safety photocell beams

    Benefits & Features

    • Successfully impact tested to PAS 68 and K12
    • Lifetime Paint; Anti skid resistant coating on top plate
    • Designed for ease of installation and maintenance
    • Hydraulically operated, three phase supply
    • Instantly reversible, 100% duty rated motor
    • Control cabinet recommended to be installed within 10 metres of unit

    Civil Requirements

    • Based on a 3000mm width blocker (millimetres)
      L: 2200 x W: 4000 x D: 935
    • control cabinet Foundation (millimetres)
      L: 800 x W: 800 x D: 300
    • note: Power and control wiring ducts required

    Electrical Requirements

    • Three Phase Supply

    Depending on configuration

    This is subject to a risk assessment to ensure the automatic equipment complies to BS EN 12453

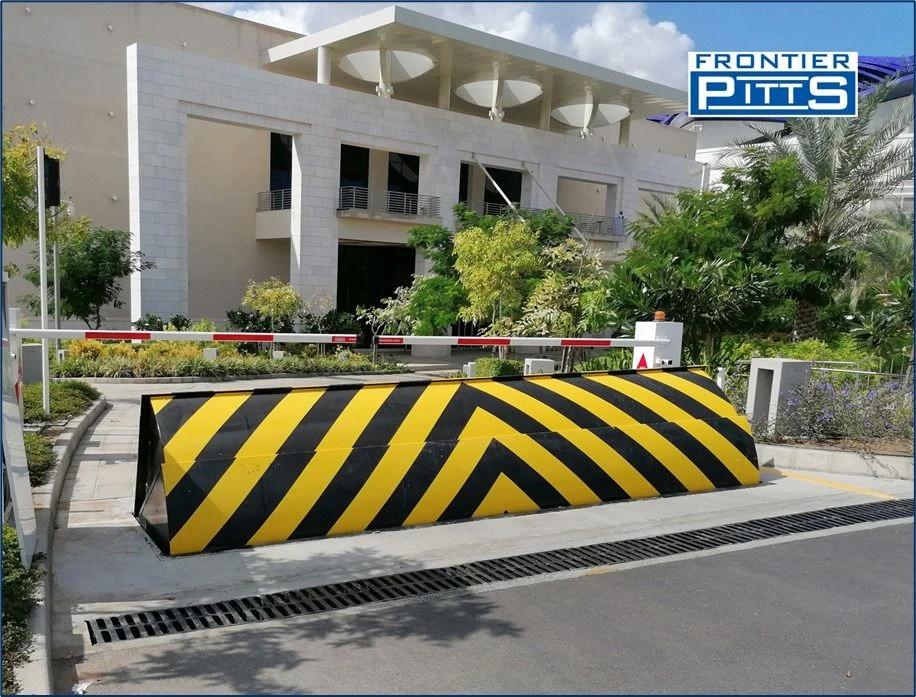

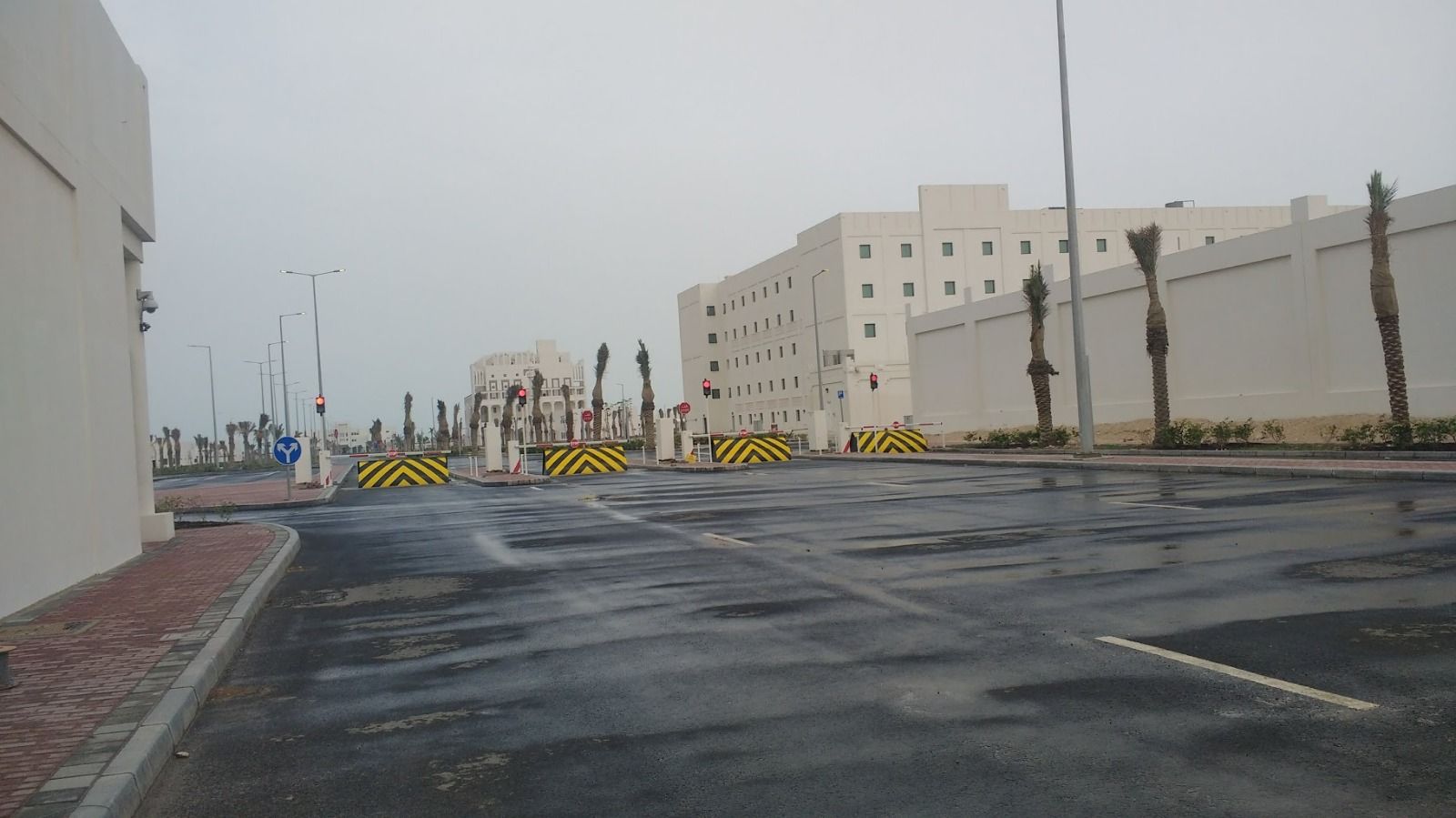

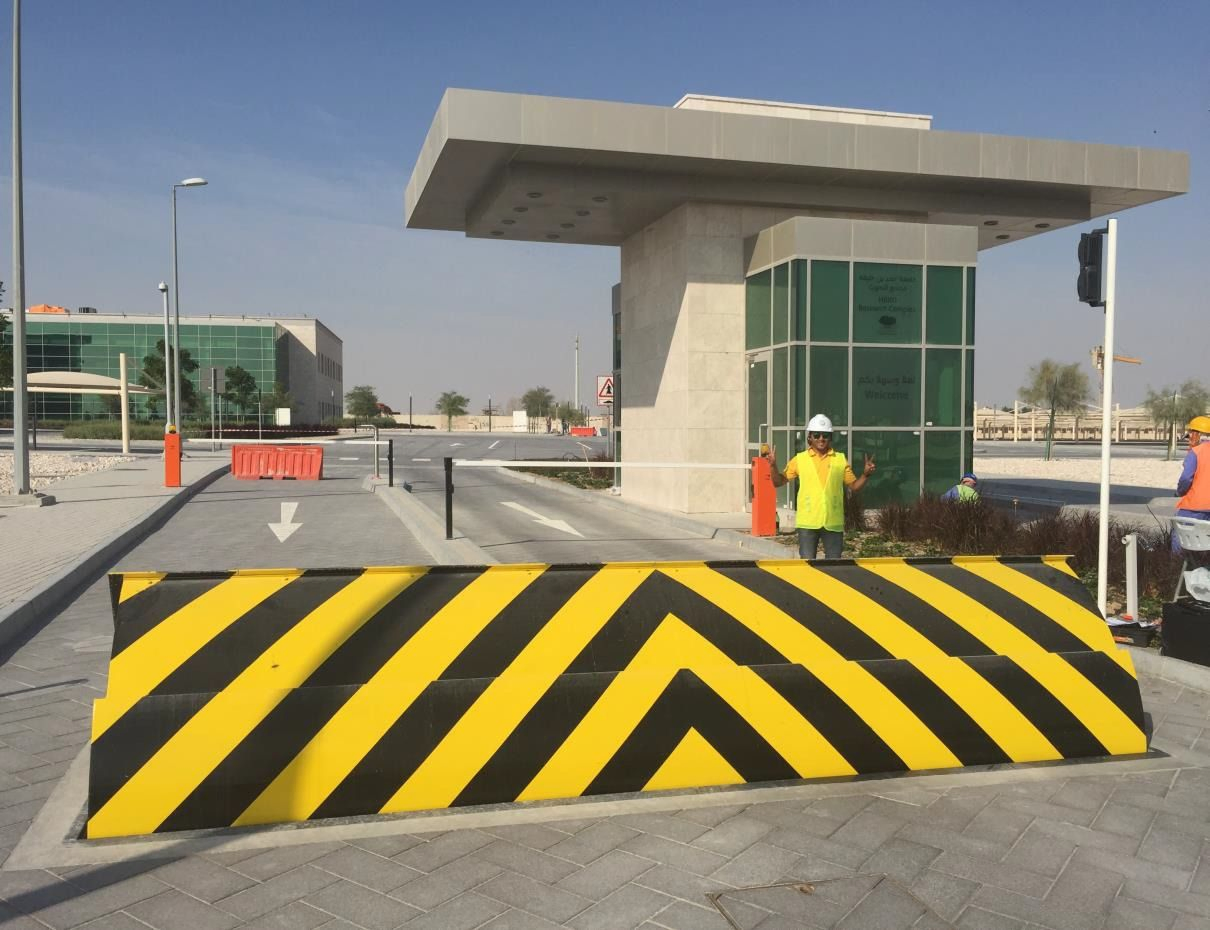

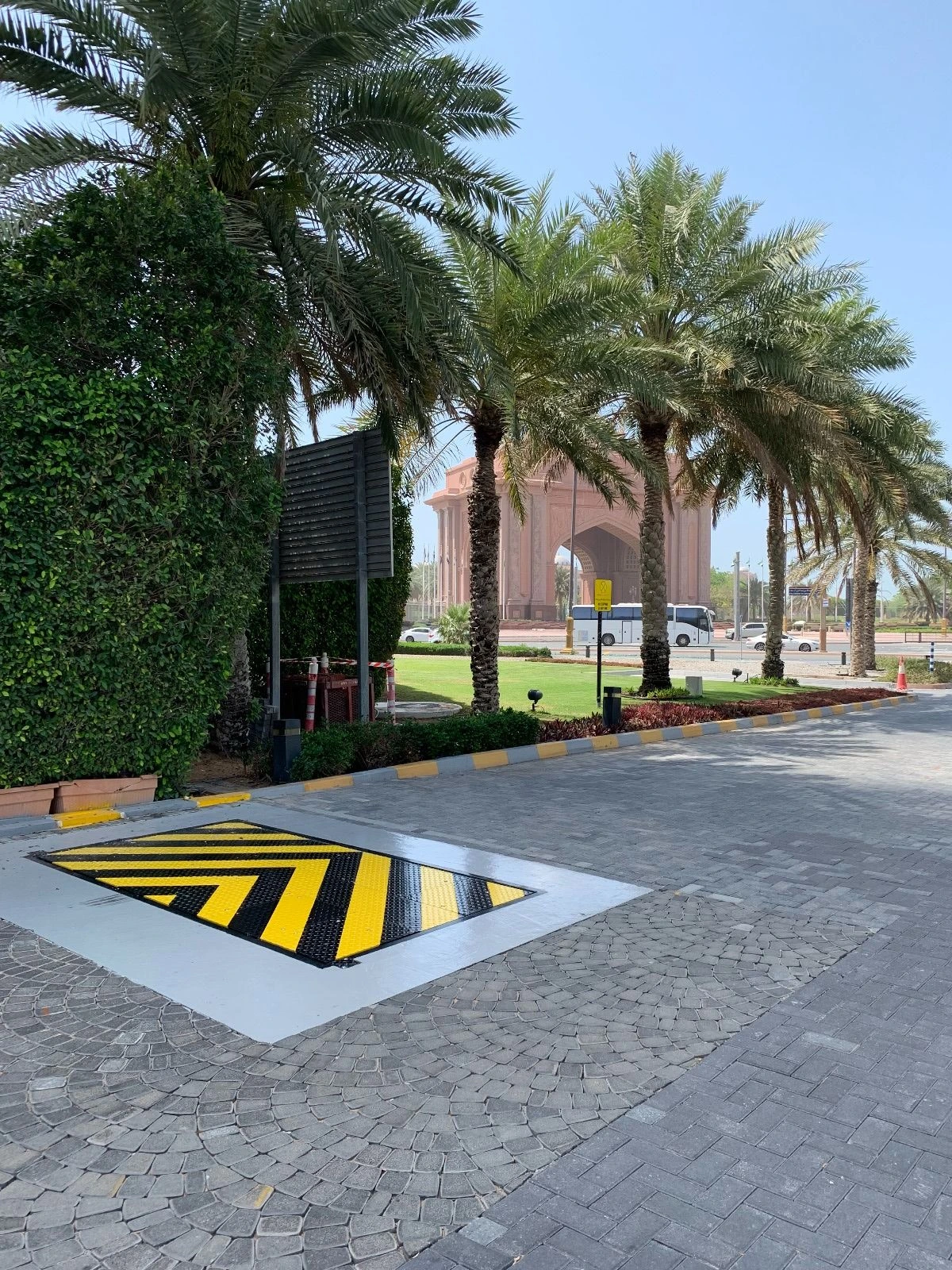

    Projects We Have Done
