Static Bollards

Terra Shallow Venus Bollards PAS 68, 7.5t @ 48kph

The Shallow Depth Terra Venus Bollards has been successfully impact tested to the British PAS 68 specification, stopping 7.5t @ 48kph. With an embedment depth of only 300mm, the Shallow Depth Shallow Mount Bollard is Polyester Powder Coated as standard, with a range of sleeves available including stainless steel finishes. Shallow mount bollards are ideal for existing establishments where deep excavation is not possible due to underground utilities, limited space, or restricted foundation depth.

This shallow mount bollard product is certified by the Security Industry Regulatory Agency (SIRA), verifying compliance with Dubai’s regulatory framework for physical security systems. The SIRA approval confirms that the product meets rigorous operational, performance, and safety standards required for deployment in critical and high-risk environments.

Download Catalogue Download Drawings
For More Information

    Crash rated shallow Venus arrange in array at Centre of Curiosity

    Shallow Bollard

    • v/7500[N2]/48/90:3.3/0.0
    • Shallow Foundation Type B Embedment: 300mm
    • Height above ground:1000mm
    • Diameter: 219mmø
    • Finish: Polyester Powder Coated
    • Options: Range of Aesthetic Sleeves, including stainless steel

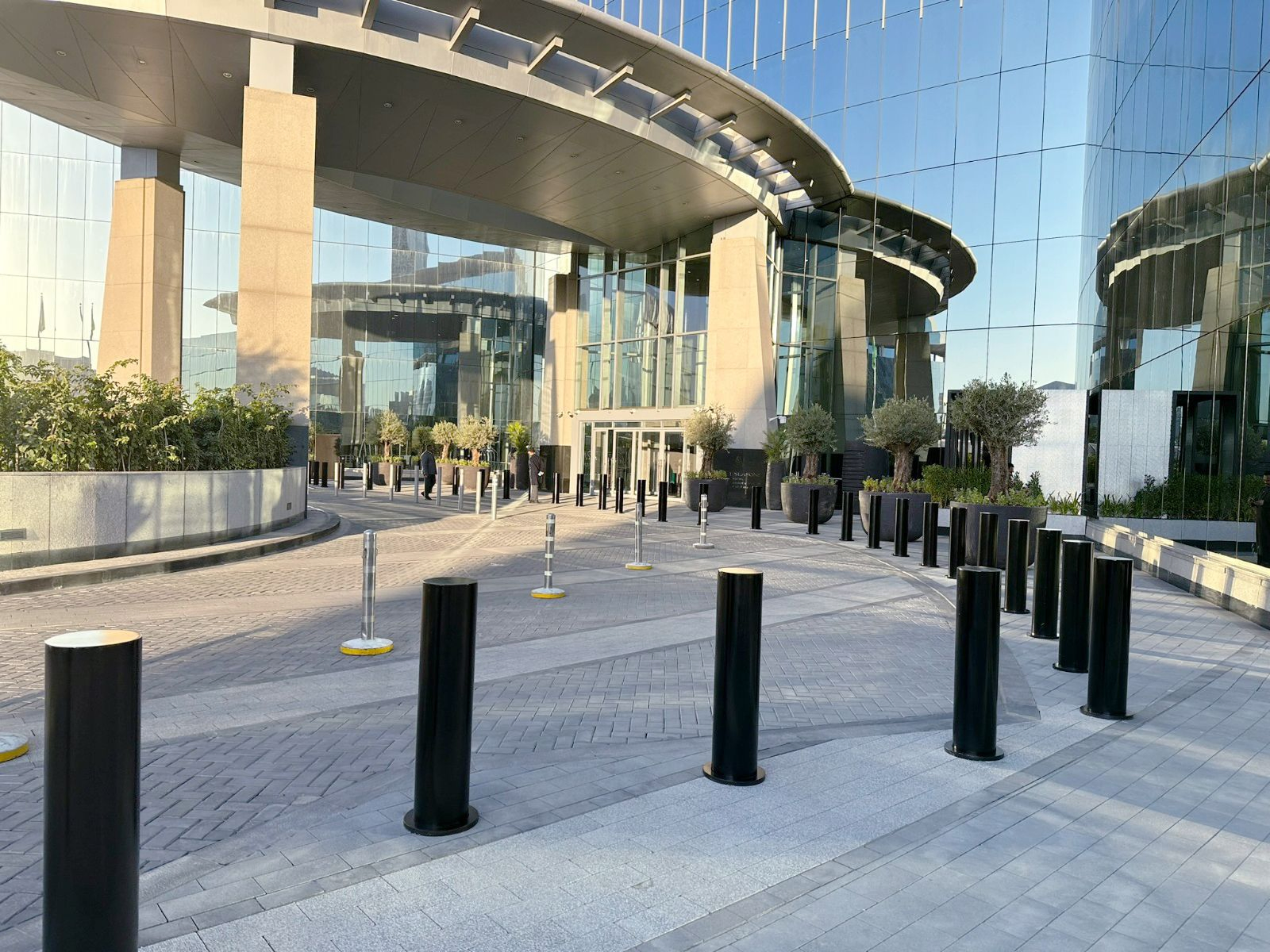

    Projects We Have Done

    TerraGuard 900 surface-mount security bollard with planter design for high-security applications
    TerraGuard 900 surface-mount security bollard with planter design for high-security applications
    TerraGuard 900 surface-mount security bollard with planter design for high-security applications
    TerraGuard 900 surface-mount security bollard with planter design for high-security applications
    TerraGuard 900 surface-mount security bollard with planter design for high-security applications
